Overview:

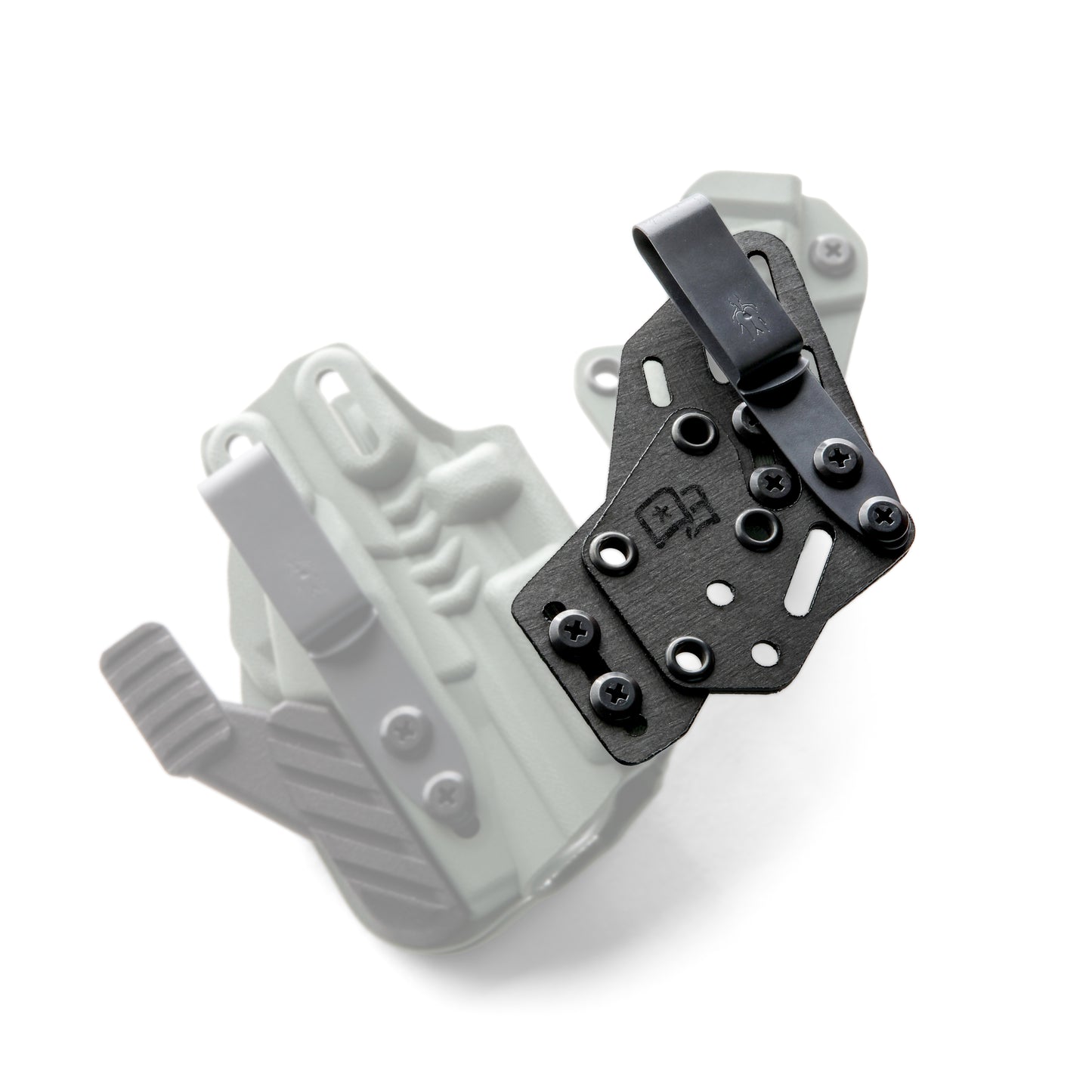

Introducing the ANX [annex] AIWB attachment. TXC has long supported the option to carry a spare mag (both separately and attached) in our product catalogue to best accommodate your use case. The ANX is a simplification of that concept within our offerings. This attachment gives you the option to attach a spare mag to any holster in our performance IWB line. Designed to function primarily with CVRT and DELTA, ANX provides versatile positioning for both your spare mag and a secondary clip.
What's Included:
-
ANX PLATE, (1) DUAL POST, (2) SHORT POSTS, (2) SHORT SCREWS, (2) MEDIUM SCREWS, (2) RUBBER O RINGS.
- OPTIONAL ADDITIONAL CLIP W/ HARDWARE.
Typical Assembly
1. Remove the secondary clip from your holster (the clip closest to the top of the slide). Set aside the clip and the hardware that was securing it.
2. Attach the ANX to your holster. Use the dual post and two screws removed in Step 1 to secure the ANX to the holster’s secondary slot.
3. Remove the Shorty DCC clip from your magazine carrier. Set aside the dual post and two short screws that were securing it for use in Step 5.
4. Attach the holster clip removed in Step 1 to the ANX (or Shorty clip from Step 3). Using the provided dual post and short screws, install the clip in one of the ANX’s three available positions (shown in photo 2). Place the provided rubber O-rings between the clip and the ANX. Do not fully tighten the clip yet, as it may cover the mounting holes you want to use for your magazine carrier.
5. Attach your magazine carrier to the back of the ANX in your preferred position using the dual post and screws from the magazine carrier.
-If the dual post cannot span your desired mounting holes, use the two provided short posts.
-Medium screws are also included for mounting through the double-layer material near the bottom ANX slot.
6. Tighten all hardware securely. Verify your setup and retention, then train with your new configuration.
